GE Logistics

Basic Specification:

General Contractor:  NuFusion
Location:  Mississauga, Ontario
Stage: Complete
Construction Method:  Invited Tender
Building System:  Pre-engineered

Services Rendered:  Consulting

Play Pause

General Description:

ISI was contacted by the General Contractor after being referenced by the pre-engineered building supplier and insulated panel manufacturer.  The contractor wasn't familiar with pre-eng building systems or insulated panel assemblies and hired ISI to oversee the design and provide design drawings.  ISI also managed the erection of the pre-engineered structure and installation of the insulated panel assembly.

Design Highlights:

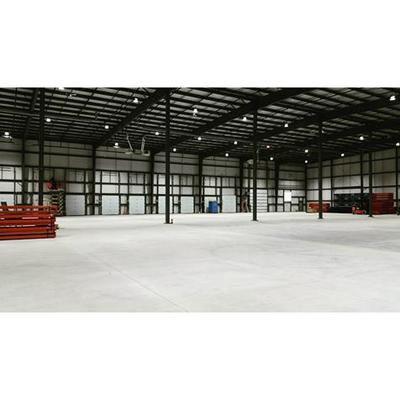

• This 51,000 S/F facility is a warehousing hub for GE Logistics.

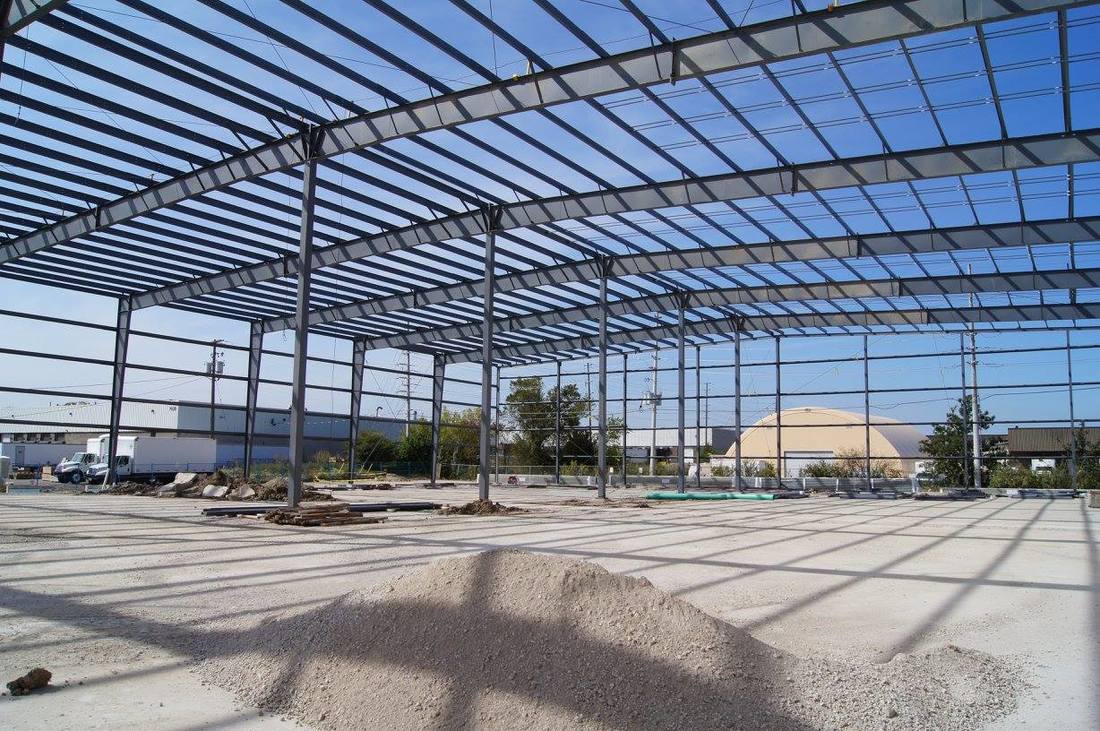

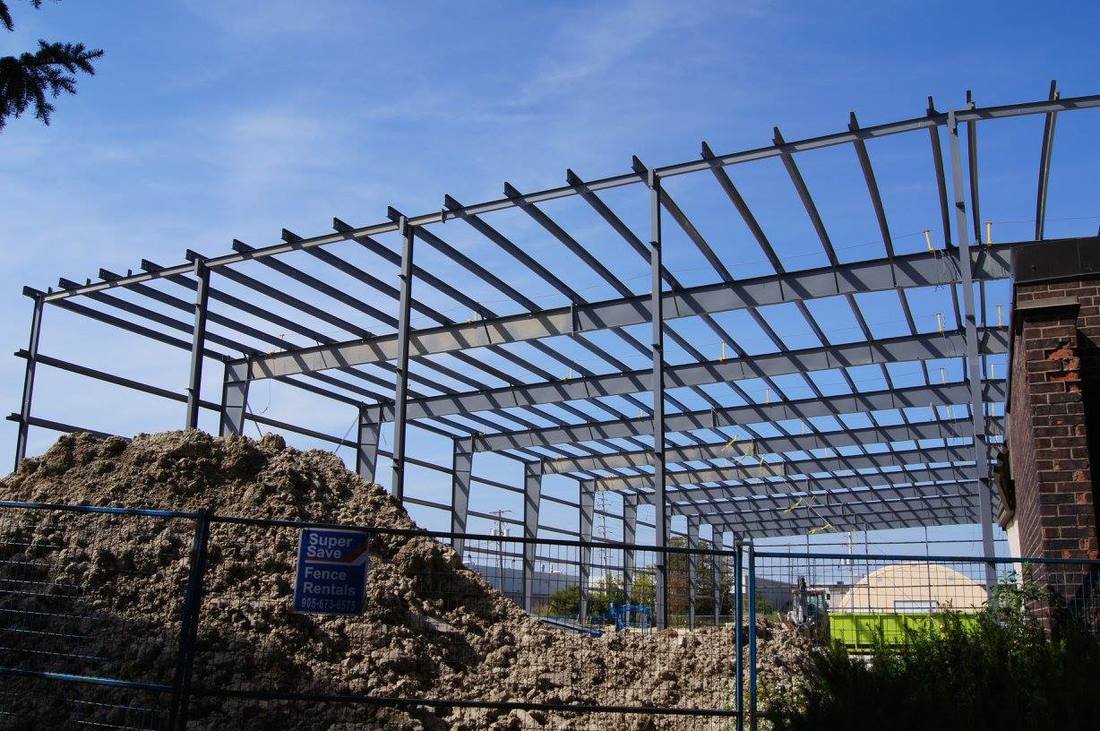

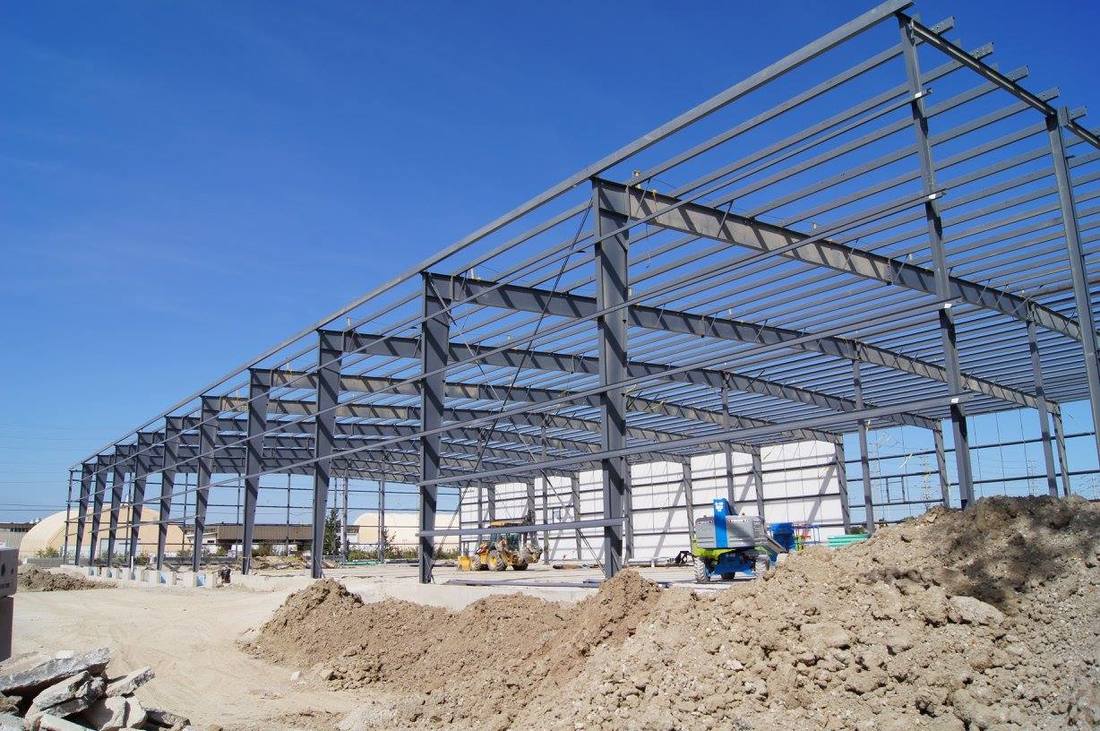

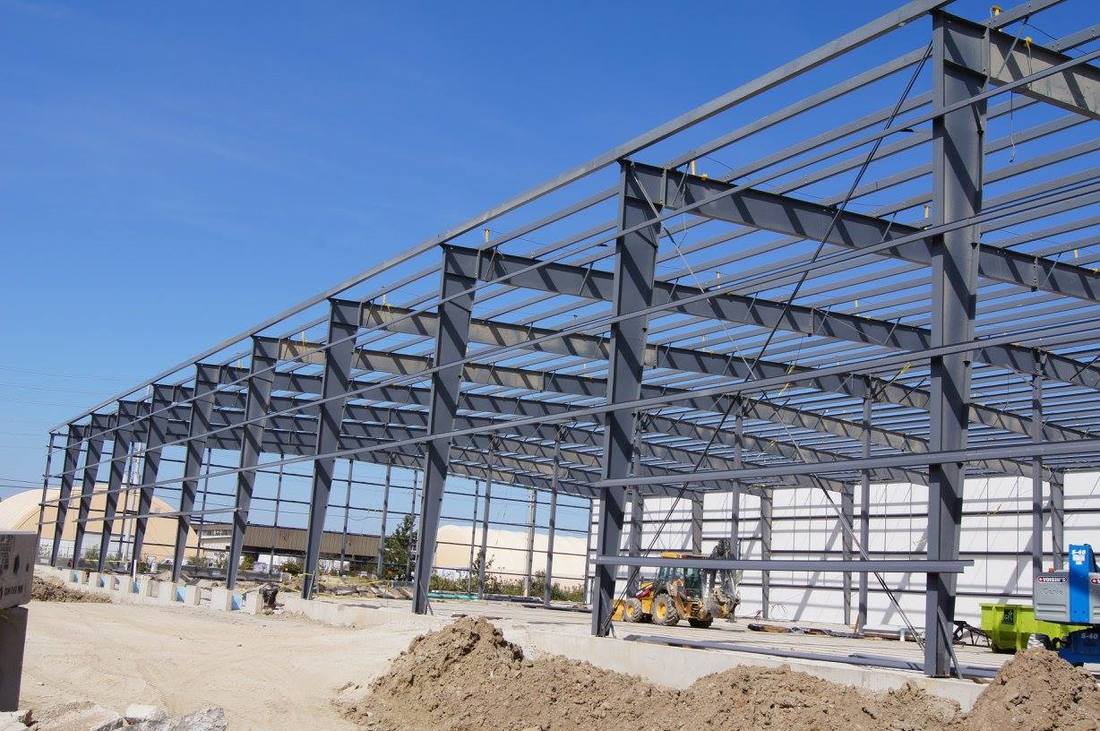

• The Main Frame was a 2-span, Gable design with an independent Conventional Office structure located at the South end.
•  The roofing assembly is a 5" thick, standing seam insulated panel which met the SB-10 thermal requirements.

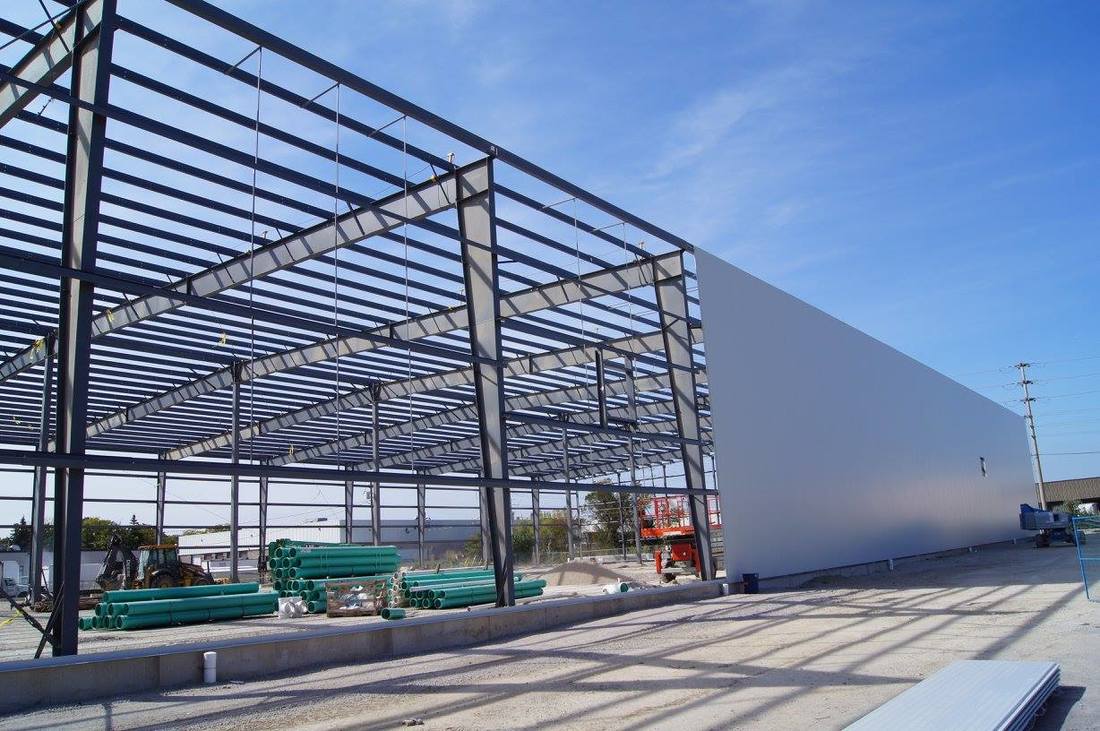

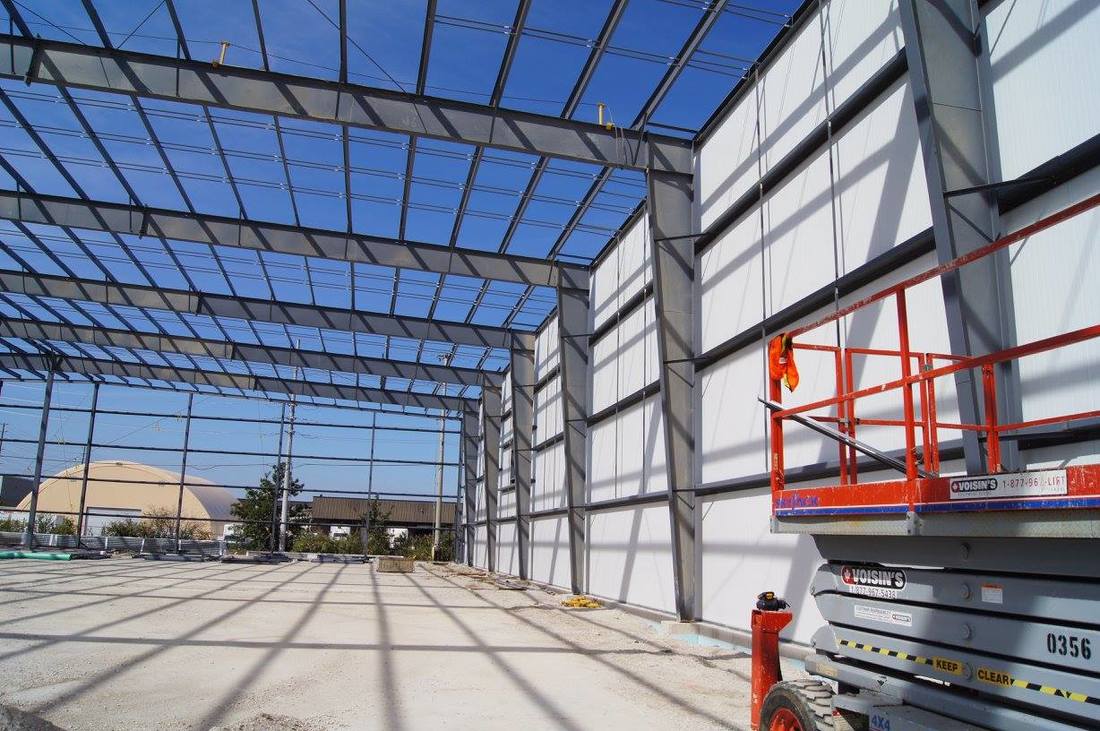

• The wall assembly is a 4" insulated panel which integrates with the masonry cavity wall assembly with brick veneer and glass block assembly.
• By working together with the General Contractor and the consultants, ISI was able to provide a building that was not only functional but aesthetically pleasing.
